Twist Knot Wheel brushes Series U (D 150-250) for
閱讀：200次 日期：2019-12-19 08:51:20

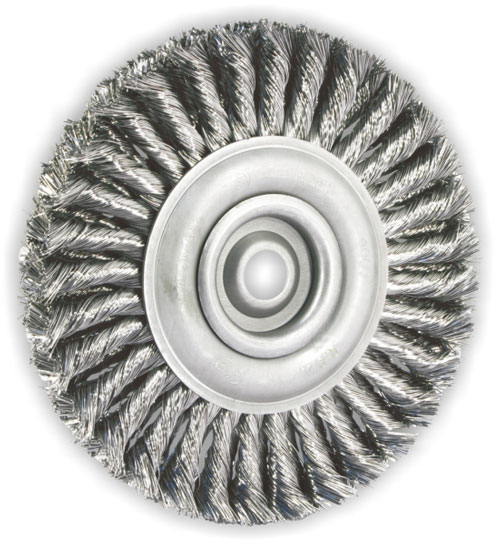

Wheel Brushes in iron wire with twisted knots for heavy-duty jobs at high rotation speed.
Applications: Deburring and aggressive mechanical pickling.

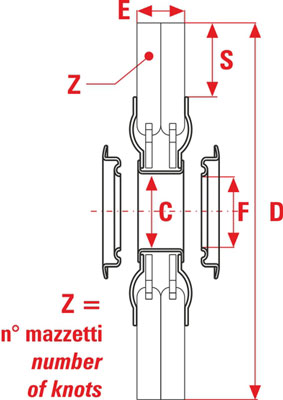

| D | ART | E | S | C | F | Z | ? mm | WIRE | MAX RPM | Box | REF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 | U3152 | 18 | 30 | 32 | 16 | 24x2 | 0,5 | Steel | 9000 | 6 | 511 |
| 150 | U3152 | 18 | 30 | 32 | 16 | 24x2 | 0,8 | Steel | 9000 | 6 | 512 |
| 150 | U3153 | 30 | 30 | 32 | 16 | 24x3 | 0,5 | Steel | 9000 | 6 | 513 |
| 150 | U3153 | 30 | 30 | 32 | 16 | 24x3 | 0,8 | Steel | 9000 | 6 | 514 |
| 200 | U5202 | 30 | 43 | 50 | 20 | 32x2 | 0,5 | Steel | 9000 | 6 | 524 |
| 200 | U5202 | 30 | 43 | 50 | 20 | 32x2 | 0,8 | Steel | 9000 | 6 | 525 |
| 200 | U5203 | 40 | 43 | 50 | 20 | 32x3 | 0,5 | Steel | 9000 | 6 | 526 |
| 200 | U5203 | 40 | 43 | 50 | 20 | 32x3 | 0,8 | Steel | 9000 | 6 | 527 |
| 200 | U8202* | 30 | 23 | 50 | 25 | 40x2 | 0,5 | Steel | 9000 | 6 | 2198 |
| 200 | U8203* | 40 | 23 | 50 | 25 | 40x3 | 0,5 | Steel | 9000 | 6 | 2199 |
| 250 | U8251 | 14 | 48 | 77 | 25 | 40 | 0,5 | Steel | 4500 | 1 | 528 |
| 250 | U8251 | 14 | 48 | 77 | 25 | 40 | 0,8 | Steel | 4500 | 1 | 529 |
| 250 | U8252 | 30 | 48 | 77 | 25 | 40x2 | 0,5 | Steel | 4500 | 1 | 530 |
| 250 | U8252 | 30 | 48 | 77 | 25 | 40x2 | 0,8 | Steel | 4500 | 1 | 531 |
| 250 | U8253 | 40 | 48 | 77 | 25 | 40x3 | 0,5 | Steel | 4500 | 1 | 532 |
| 250 | U8253 | 40 | 48 | 77 | 25 | 40x3 | 0,8 | Steel | 4500 | 1 | 533 |
